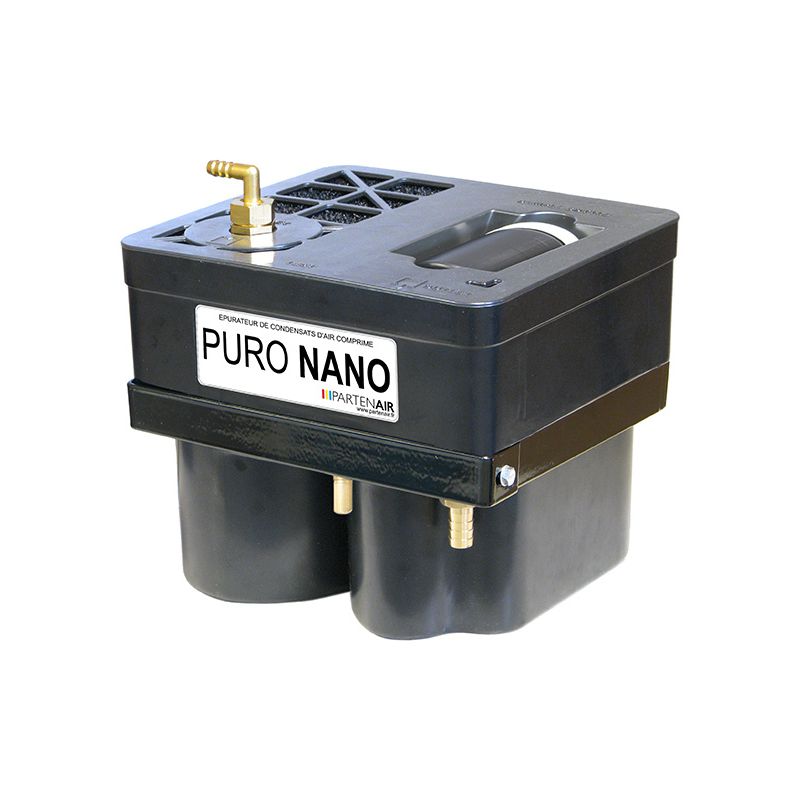

PURO NANO separator
| Manufacturer | Partenair |
| Categories | Compressed air treatment, Condensate purifiers for compressed air circuit |
| Document to download | |
| NanoEvo |
The first disposable separator
The PURO NANO condensate purifier is specially designed for small installations
(compressors of 15 CV or 120 m³ / h maximum).
It offers remarkable separation efficiency. The various filter media encapsulated in the ABS
casing guarantee a residual oil content of less than 10 ppm in the purified waste.
PURO NANO has a retention capacity of up to 1.5 liters of oil, which corresponds to 3000
hours of non-stop use for a 15 CV compressor.
It is compatible with mineral or synthetic lubricants. A special version is also available for
lubricants based on polyglycols.
A wall support and a release turbidity test kit are supplied as standard with the separator.
Its replacement is extremely easy and clean. Just disconnect the condensate inlet and outlet
and replace the assembly.
- Compact single use model
- Autonomous operation without energy source.
- Compliance with legislation on the content of hydrocarbons in waste water.
- 1 model for all flows up to 120 m3 / h
- Compatible with mineral or synthetic lubricants.
- Treatment of polyglycols (Specific model).
- Robust ABS construction
- Accepts condensate from all types of traps.
- Wall support provided.
- Sampling kit supplied with visual indicator of turbidity in the waste water.
- Easy and clean replacement.
* Select the generic if you don't know which model to choose. The sales department will contact you to determine the appropriate model.
* Requires a specific adsorbent and a reduction in the treated flow rate. Consult us for these
applications.
The PURO series oil / water separators are designed to purify oily compressed air
condensates on site.
They capture the oil and discharge purified water containing a maximum of 10 ppm of
lubricant per liter. (Content in accordance with the decree concerning discharges from
classified installations, law of 3 January 92 and decree of 2 February 98).
Detailed specifications
| MODEL | PURO NANO |
| Residual oil content after treatment | 10 ppm maxi |
| Maximum compressor capacity | 120 m3/h |
| Construction | ABS |
| inlet connection | 1/2» threaded |
| outlet connection | 1/4» threaded |
| Max. oil adsorption capacity | 1,5 liters |
| Temp.mini. | +1°C |
| Temp.maxi. | +60°C |
| Mineral oil treatment | Yes |
| Treatment of synthetic oils | Yes |
| Polyglycol treatment | Yes ( Special model) |
| Width | 255 mm |
| Depth | 230 mm |
| Height | 212 mm |
| Weight when empty | 2,7 kg |
