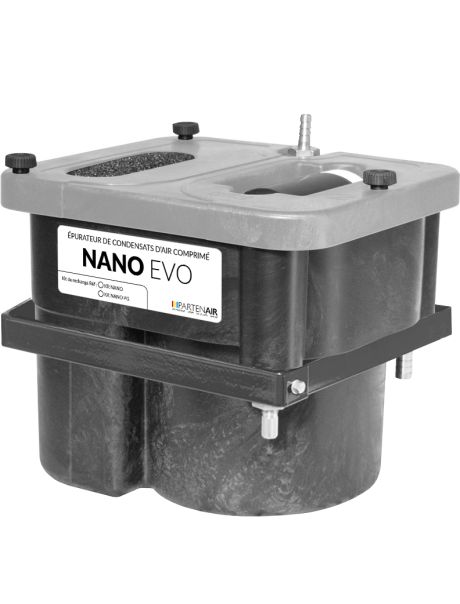

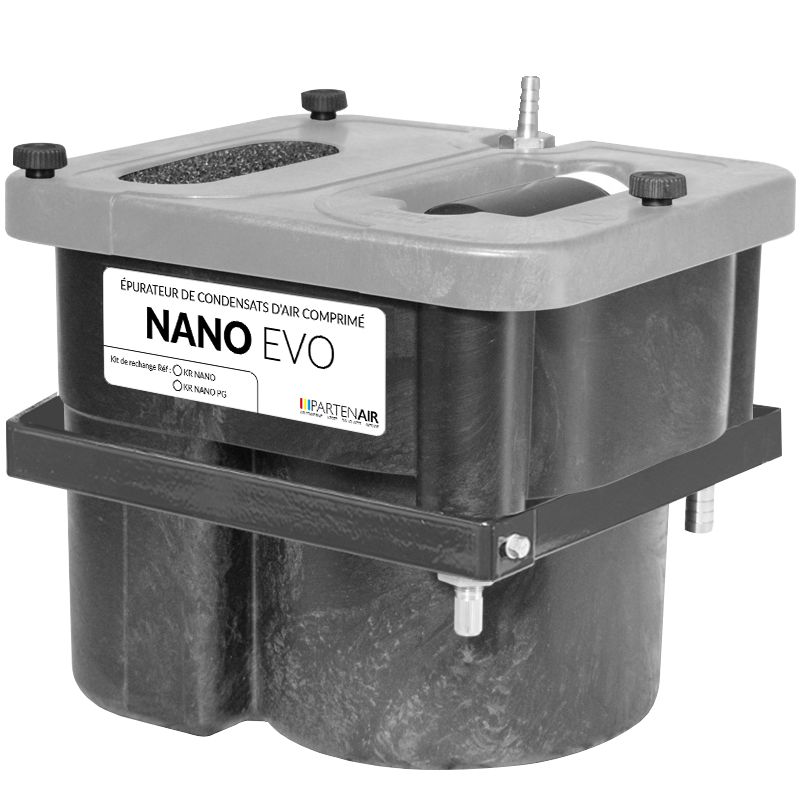

NANO EVO separator
| Manufacturer | Partenair |
| Categories | Compressed air treatment, Condensate purifiers for compressed air circuit |
| Document to download | |
| NanoEvo |
NANO EVO: THE ECO-RESPONSIBLE INNOVATION FOR INSTALLATIONS UP TO 120 m³/h
► Better environmental protection:
The renewable NANO EVO technology is the positive solution to plastic overconsumption.
This innovation goes beyond current regulations, achieving up to 5 ppm of total hydrocarbon discharge.*
► Maintenance optimization:
During maintenance, simply replace the spare kit. This ensures compliance with hydrocarbon discharge limits while reducing operational costs.
It delivers outstanding separation efficiency. The various filter media are encapsulated in an ABS housing, ensuring a residual oil content of less than 10 ppm in the treated discharge.
NANO EVO offers an oil retention capacity of up to 1.5 liters, which corresponds to 3000 hours of continuous use for a 15 HP compressor.
It is compatible with mineral or synthetic lubricants, and a special version is available for polyglycol-based lubricants.
A wall mount and a turbidity test kit for discharge monitoring are included as standard with the separator.
Replacement is extremely simple and clean: just disconnect the inlet and outlet of the condensates and replace the unit.
Together, let's act to reduce our environmental footprint!
- Compact single use model
- Autonomous operation without energy source.
- Compliance with legislation on the content of hydrocarbons in waste water.
- 1 model for all flows up to 120 m3 / h
- Compatible with mineral or synthetic lubricants.
- Treatment of polyglycols (Specific model).
- Robust ABS construction
- Accepts condensate from all types of traps.
- Wall support provided.

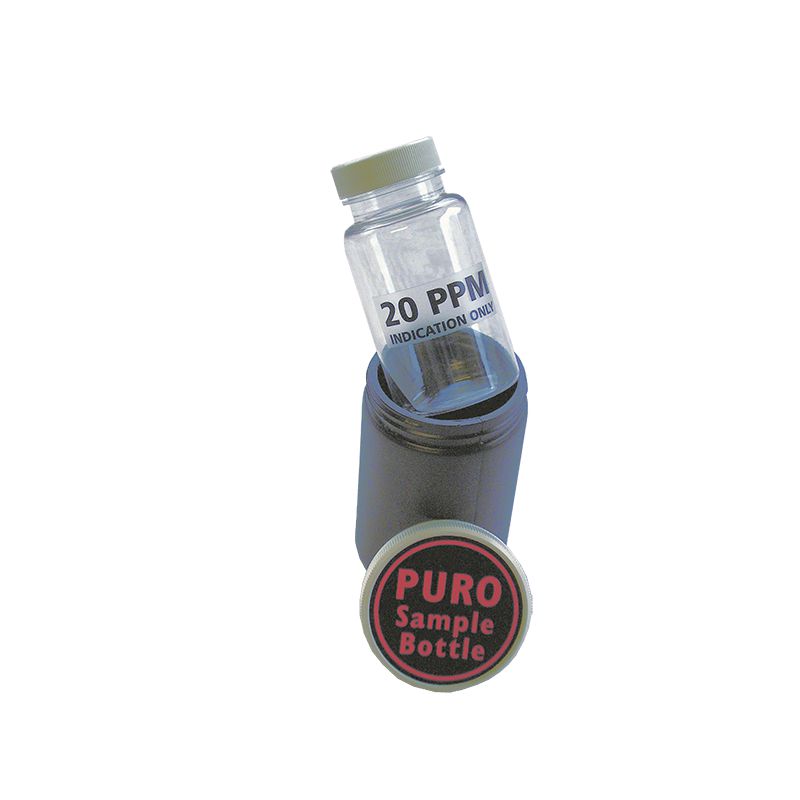

- Sampling kit supplied with visual indicator of turbidity in the waste water.
- Easy and clean replacement.
* Select the generic if you don't know which model to choose. The sales department will contact you to determine the appropriate model.
* Requires a specific adsorbent and a reduction in the treated flow rate. Consult us for these
applications.
PURO series oil/water separators are designed to purify oily compressed air condensates on site.
They capture the oil and discharge purified water containing a maximum of 5 ppm of lubricant per litre. (Content in compliance with the decree concerning discharges from classified installations, law of 3 January 92 and decree of 2 February 98).
Detailed specifications
| MODEL | PURO NANO |
| Residual oil content after treatment | <5 ppm(*) |
| Maximum compressor capacity | 120 m3/h |
| inlet connection | 1/2" threaded |
| outlet connection | 1/4" threaded |
| Max. oil adsorption capacity | 1,5 liters |
| Mineral oil treatment | Yes |
| Treatment of synthetic oils | Yes |
| Polyglycol treatment | Yes ( Special model) |
| Width | 270mm |
| Depth | 240 mm |
| Height | 249 mm |
| Weight when empty | 4,42 kg |
| Kit de rechange | KRE NANO |
