Condensate drain - JC 35
| Manufacturer | Partenair |
| Categories | Compressed air treatment, Condensate drains for compressed air, Condensate drains by timed solenoid valve |
| Document to download | |
| Novembre 2022 - J110_Purgeurs_EV_Temp |
These solenoid valves are controlled by a timer module allowing their operation to be
adjusted to the volume of condensate to be removed.
All timer modules have a manual function test as standard
JC 35
Robust solenoid valve for the evacuation of large volumes of condensate on compressors,
final refrigerants, tanks ...
- Reliable and economical steam traps.
- Simple settings easily adjustable according to the volumes to be evacuated.
- Interval between 2 adjustable purges.
- Adjustable purge time (except VPF 37).

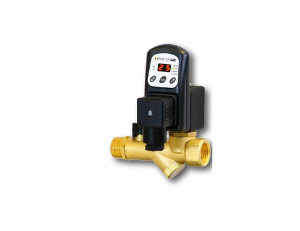

- Integrated strainer and isolation valve (COMBO model only).
- Manual operation test on all models.
- LED indication of operation
- Operating pressure up to 21 bar.
- Passage diameter up to 10 mm.
- Compatible with all compressor lubricants and all oil / water separators.
* Select the generic if you don't know which model to choose. The sales department will contact you to determine the appropriate model.
Timed solenoid valves are by far the most used on compressed air systems.
Their low investment cost, linked to excellent reliability, greatly contributed to this success.
JC 35: Equipped with a robust 3/8 ”solenoid valve with a passage diameter of 10 mm,
intended for large volumes of condensate (Compressors, refrigerant, tanks, dryers ...)
Detailed specifications
|
Inlet connection |
3/8” F |
| Outlet connection | 3/8” F |
| Internal passage diameter | 10 mm |
| Min. operating pressure | 0,2 bar |
| Max. operating pressure | 20 bars |
| Min. ambient temp. | 1°C |
| Max. ambient temp. | 60°C |
| Min. opening time | 0,5 s |
| Max. opening time | 10 sec |
| Min. interval between two drains | 0,5 min |
| Max. interval between two drains | 45 mins |
| Manual drain test | yes |
| Strainer and stopcock integrated | no |
| 220/1/50 Power supply | Standard |
| Other supply voltages | option |
| Electric protection IP65 | no |
