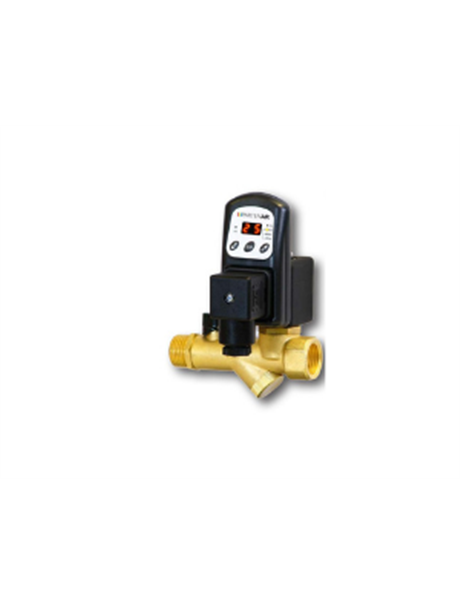

Condensate drain - COMBO 230

View larger
See the choice of models
+ -

These solenoid valves are controlled by a timer module allowing their operation to be
adjusted to the volume of condensate to be removed.
All timer modules have a manual function test as standard

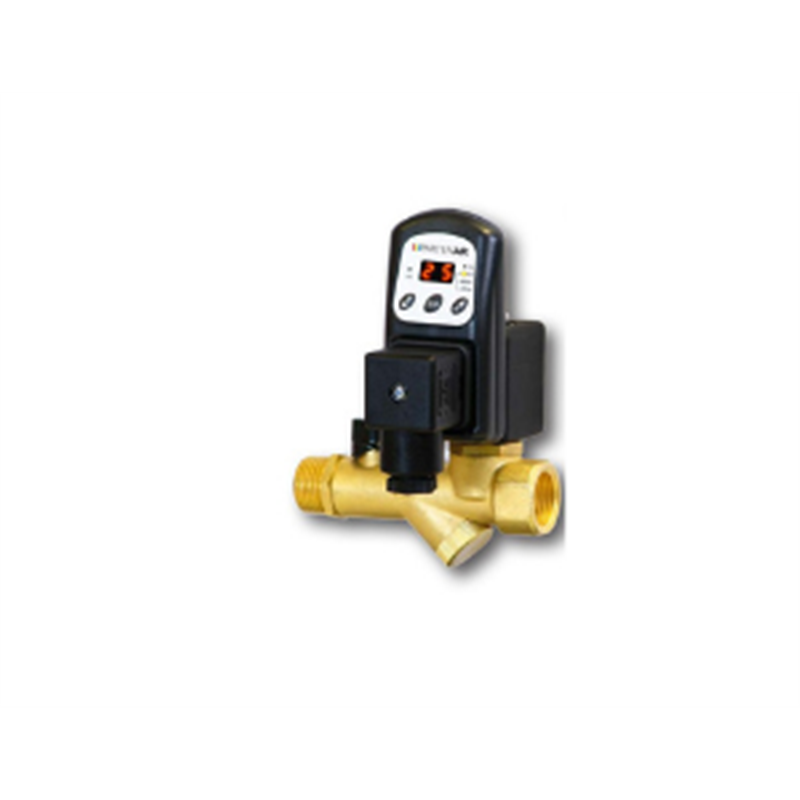

Combo 230
"All-in-One" solenoid valve that incorporates a protective strainer and a shut-off valve.

  • Reliable and economical steam traps.
  • Simple settings easily adjustable according to the volumes to be evacuated.
  • Interval between 2 adjustable purges.
  • Adjustable purge time (except VPF 37).
  • Integrated strainer and isolation valve (COMBO model only).
  • Manual operation test on all models.
  • LED indication of operation
  • Operating pressure up to 21 bar.
  • Passage diameter up to 10 mm.
  • Compatible with all compressor lubricants and all oil / water separators.

Timed solenoid valves are by far the most used on compressed air systems. Their low
investment cost, linked to excellent reliability, greatly contributed to this success.


COMBO: an “all in 1” model that incorporates a protective strainer and an isolation valve.

Detailed specifications

Inlet connection 1/4’’F - 1/2’’ M
Outlet connection 1/2’’ F
Diamètre deInternal passage diameter 4 mm
Min. operating pressure 0,2 bar
Max. operating pressure 21 bars
Min. ambient temp. 1°C
Max. ambient temp. 60°C
Min. opening time 0,5 s
Max. opening time 10 sec
Min. interval between two purges 0,5 min
Max. interval between two purges 45 mins
Manual drain test yes
Strainer and stopcock integrated yes
Power supply 220/1/50 Standard
Other supply voltages no
Electric protection IP65 yes
