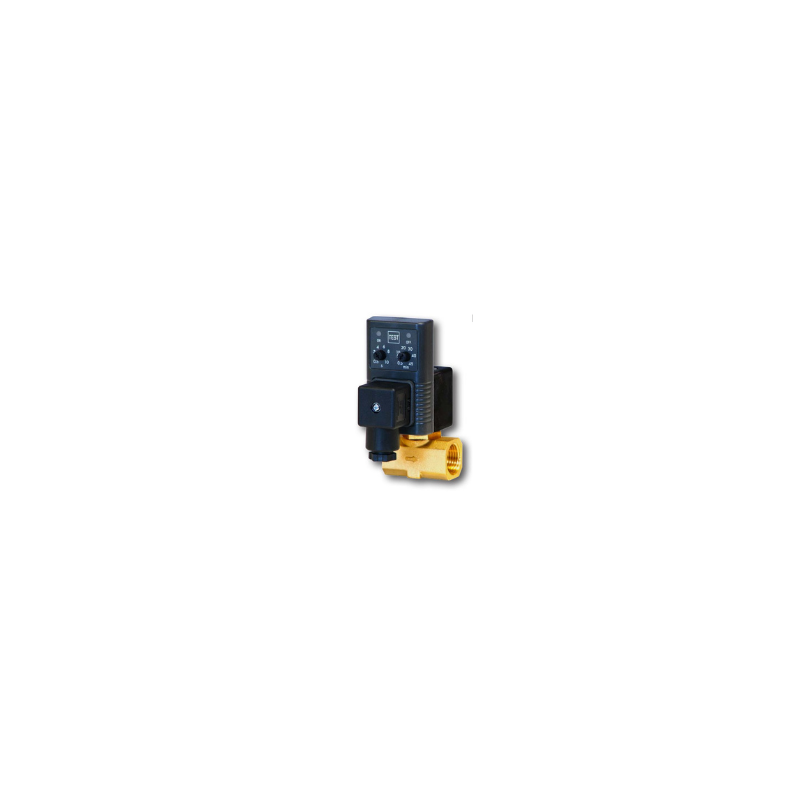

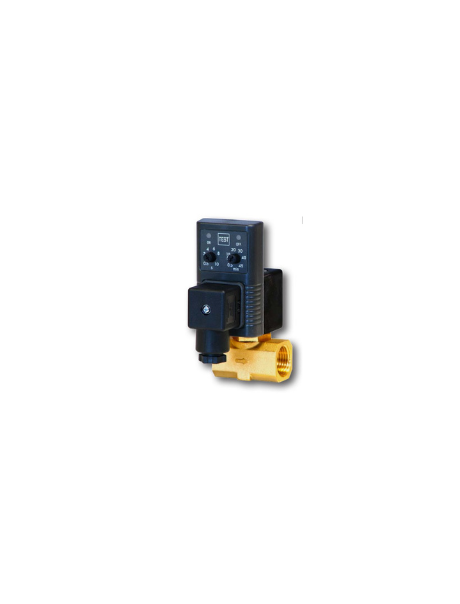

Condensate drain - COMBO 230
View larger
| Manufacturer | Partenair |
| Categories | Compressed air treatment, Condensate drains for compressed air, Condensate drains by timed solenoid valve |
These solenoid valves are controlled by a timer module allowing their operation to be
adjusted to the volume of condensate to be removed.
All timer modules have a manual function test as standard
Combo 230
"All-in-One" solenoid valve that incorporates a protective strainer and a shut-off valve.
- Reliable and economical steam traps.
- Simple settings easily adjustable according to the volumes to be evacuated.
- Interval between 2 adjustable purges.
- Adjustable purge time (except VPF 37).
- Integrated strainer and isolation valve (COMBO model only).
- Manual operation test on all models.
- LED indication of operation
- Operating pressure up to 21 bar.
- Passage diameter up to 10 mm.
- Compatible with all compressor lubricants and all oil / water separators.
Timed solenoid valves are by far the most used on compressed air systems. Their low
investment cost, linked to excellent reliability, greatly contributed to this success.
COMBO: an “all in 1” model that incorporates a protective strainer and an isolation valve.
Detailed specifications
| Inlet connection | 1/4’’F - 1/2’’ M |
| Outlet connection | 1/2’’ F |
| Diamètre deInternal passage diameter | 4 mm |
| Min. operating pressure | 0,2 bar |
| Max. operating pressure | 21 bars |
| Min. ambient temp. | 1°C |
| Max. ambient temp. | 60°C |
| Min. opening time | 0,5 s |
| Max. opening time | 10 sec |
| Min. interval between two purges | 0,5 min |
| Max. interval between two purges | 45 mins |
| Manual drain test | yes |
| Strainer and stopcock integrated | yes |
| Power supply 220/1/50 | Standard |
| Other supply voltages | no |
| Electric protection IP65 | yes |
