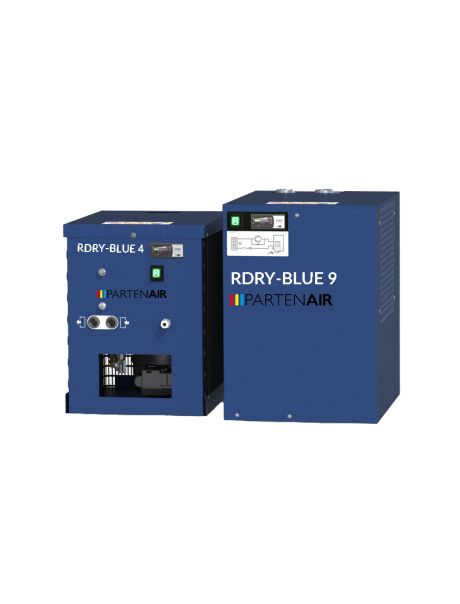

Sécheur par réfrigération RDRY-BLUE
| Manufacturer | Partenair |
| Categories | Compressed air treatment, Dryers for compressed air circuits: refrigeration, adsorption, membrane dryers, Refrigerated compressed air dryers |
| Document to download | |
| Documentation RDRY-BLUE |
Refrigeration dryer with low Global Warming Potential fluid R513a
Reliability, Performance and Attractiveness
Dew point +3°C
6 models from 24 to 180 m³/h
Unrivalled competitiveness in the compressed air treatment market
The RDRY-BLUE range is the new generation of refrigeration dryers at a very attractive price and with a low environmental impact.
Robust and compact, this model is highly attractive in the compressed air market:
- R513A refrigerant with low GWP (*)
- Proportional power control for perfect dew point stability at +3°C
- Copper brazed stainless steel evaporator (RDRY-BLUE 4 to 9) or aluminium evaporator (RDRY-BLUE 12 to 29)
- High-efficiency compressor
- Dew point control via hot gas bypass valve
- Static condenser (RDRY-BLUE 4 to 9) and with reliable fan (RDRY-BLUE 12 to 29)
- Fan control by temperature sensor (RDRY-BLUE 12 to 29)
- Improved robust chassis, low centre of gravity
- Optional automatic timed condensate drain or capacitive electronic condensate drain
- MODBUS RS485 RTU and dry contact alarm output (RDRY-BLUE 12 to 29)
(*) GWP: Global Warming Potential
Translated with DeepL.com (free version)
Detailed specifications
| Nominal performance | at 7 bar pressure |
| 35°C compressed air and 25°C ambient temperature | |
| Minimum ambient temperature | 1°C - maxi. 45°C |
| Minimum compressed air temperature | 10°C - maxi. 55°C |
| Maximum operating pressure | 16 bars |
| Power supply | 230/1/50 Hz |
| Max. pressure drop at nominal | from 70 to 250 mbar, depending on model |
| Refrigerant | R 513 A |
