COMPRESSED AIR - NITROGEN - CHILLER - MEASURE
DISTRIBUTOR
| Manufacturer | Partenair |
| Categories | Compressed air treatment, Condensate purifiers for compressed air circuit |
| Document to download | |
| Notice d'utilisation DISTRIBUTOR |
Condensate distributor

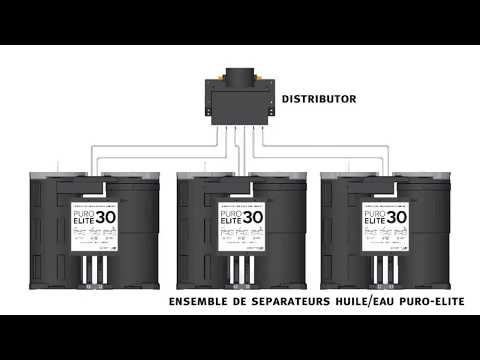

Large compressed air systems may require the installation of several condensate separators.
To connect the oil / water separators and ensure a homogeneous distribution of the
condensate, it is necessary that the DISTRIBUTOR ensures that the elements are saturated
uniformly.
The DISTRIBUTOR has two 1 "condensate inlets and six 1/2" outlets.
The depressurization chamber ensures the depressurization of the compressed air
condensates and subsequent distribution in the oil-water separators.
- Uniform distribution of condensate
- Autonomous operation without energy source
* Select the generic if you don't know which model to choose. The sales department will contact you to determine the appropriate model.
The oil / water separators of the PURO series make it possible to capture the oil and
discharge purified water containing a maximum of 10 ppm of lubricant per liter. (Content in
accordance with the decree concerning discharges from classified installations, law of 3.01.92 and decree of the 2.02 98).
Detailed specifications
| Separator connection points | 6 |
| input connection | 1" BSP (2*) |
| outlet connection | 1/2" BSP (6*) |
| body material | PP |
| Total recycling | Yes |
| Body Color | Black |
| Installation kit included | Yes |
| Installation kit contains: | Wall mounting bracket with bolts and plugs, spirit level |
