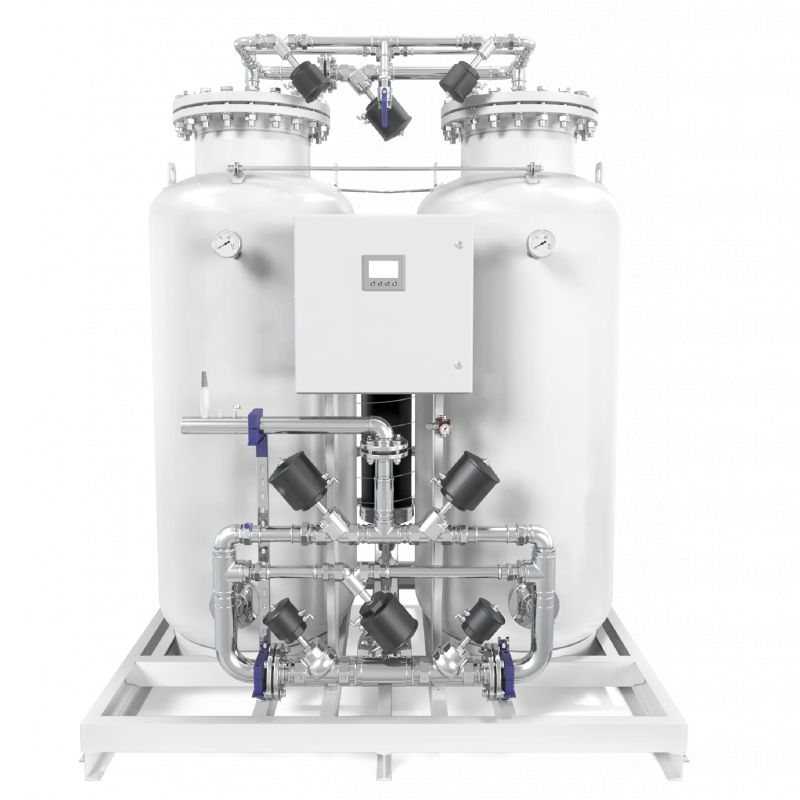

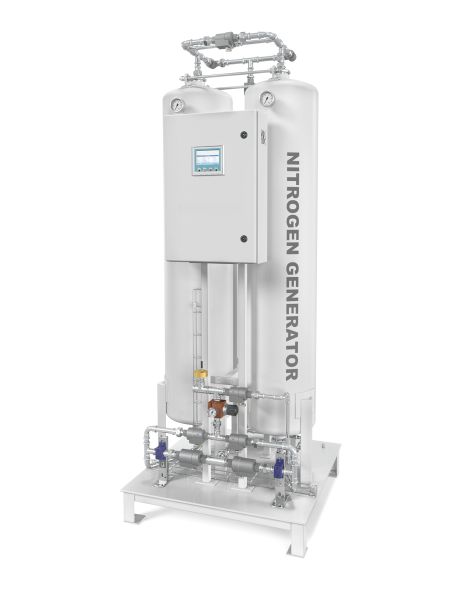

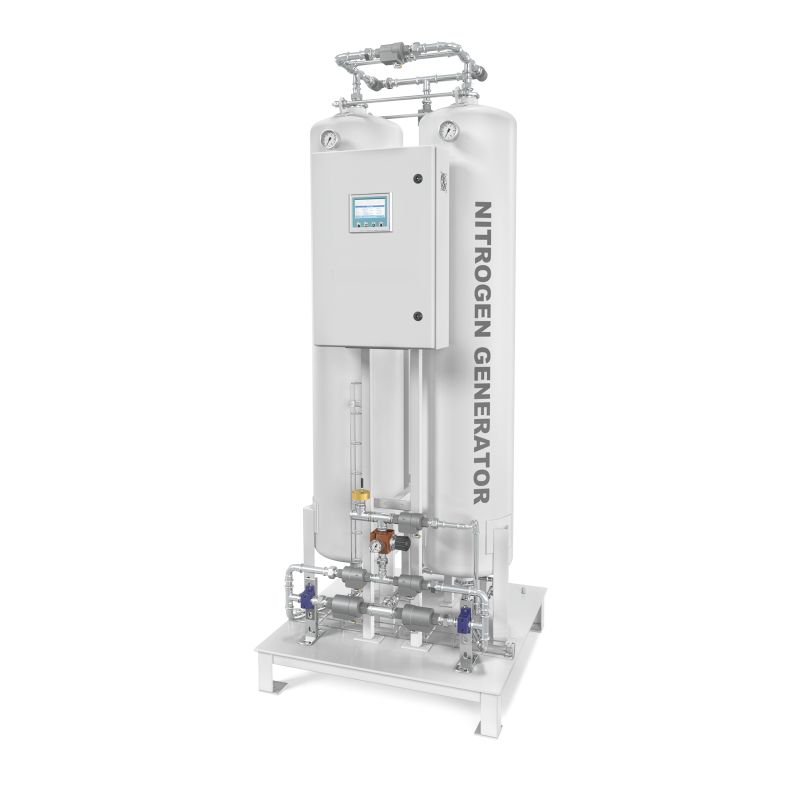

N, SEP, MultiSEP series nitrogen generator
| Manufacturer | Partenair |
| Categories | Nitrogen generators |
| Document to download | |
| Brochure nitrogen generator |
Séries N, SEP, MULTISEP
Very high purity nitrogen generators
This technology offers an excellent balance between performance and operating costs: it allows the purity of the nitrogen produced to be precisely adjusted, ensuring optimised energy consumption that is perfectly aligned with the actual needs of your application. To guarantee maximum reliability and a long service life, the generators incorporate high-quality components, including pneumatic valves with inclined seats.
The solution for your nitrogen independence
Faced with the continuous increase in the cost of industrial nitrogen and the risks associated with supply disruptions, installing an on-site nitrogen generator is a strategic choice. By producing nitrogen directly from compressed air, this solution ensures an autonomous, stable and secure supply, while eliminating dependence on cylinders or tanks.
Key strengths
- Robust design
- Stainless steel piping
- Continuous purity monitoring
- Intuitive Siemens control interface
- Simplified maintenance
- Control of process consumption
- Rapid return on investment
Applications
- Food Packaging
- Inerting
- Pharmaceuticals
- Plastics
- Electronics
* Select the generic if you don't know which model to choose. The sales department will contact you to determine the appropriate model.
3 high-performance series
From 1.3 to 98.9 m³/h
N Series - Low flow rates
From 12.5 to 989.2 m³/h
SEP Series - Medium flow rates
From 125 to 4 946 m³/h
MULTISEP Series - Multi-Column Process High Flow Rates
Automatic operation
The generators are controlled by a highly reliable programmable logic controller offering outputs for remote monitoring and alarm management.
The touchscreen user interface provides intuitive access to all operating parameters such as nitrogen purity, air and nitrogen pressures, the different phases of the cycle, operating hours, maintenance intervals, etc.
Optimised profitability
Producing nitrogen directly on site drastically reduces the usual supply costs. There is no longer any need to manage recurring orders, logistics, storage or handling of nitrogen gas or liquid tanks: the investment in a generator is quickly recouped thanks to the savings made on a daily basis.
Continuously monitored nitrogen purity
Current nitrogen generation technologies offer a wide range of purity, from 95% to 99.9995%. This flexibility allows the purity level required for each application to be precisely tailored, whether for standard processes or sensitive processes requiring ultra-pure nitrogen.
Reliable and continuous supply
With a nitrogen generator, the supply is stable, uninterrupted and completely independent of external suppliers. This eliminates the risk of shortages, protects production continuity and avoids costly downtime due to a lack of nitrogen.Personalised support
PARTENAIR IS HERE TO HELP YOU!
Let's discuss your projects HERE
Detailed specifications
Terms of use
| Ambient temperature | 5 to 50°C |
| Outlet pressure | 5 to 9 bar |
| Intlet pressure | 7.5 to 11 bar |
| Nitrogen dew point | -50°C (-70°C) |
| Max. dew point upstream of the generator | 3°C |
| Air quality class according to ISO 8573-1 | 1.4.1 |
| Filtration grade | 0,01 micron |
| Power supply | 100 à 240V AC / 50 ou 60 Hz |
Options & accessoires
| Compressed air inlet pressure regulator | Standard |
| Oxygen probe for nitrogen purity control | Standard |
| Impure nitrogen exhaust valve | Standard |
| Mass flow controller with proportional valve and flow meter | Standard |
| Energy savings depending on pressure | Standard |
| Operating data recording | Standard |
| Modbus TCP/IP output | Standard |
Correction factor according to operating pressure
Online sizing tool
(1) Flow rates indicated in m³/h (20°C - 1 bar abs) for a compressed air inlet pressure of 7 bar rel. and a compressed air temperature between 20 and 30°C.
(2) Dry air tank upstream required for proper operation of the generator.
