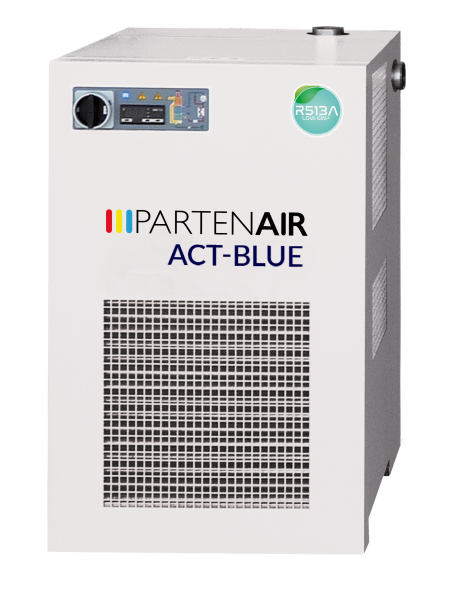

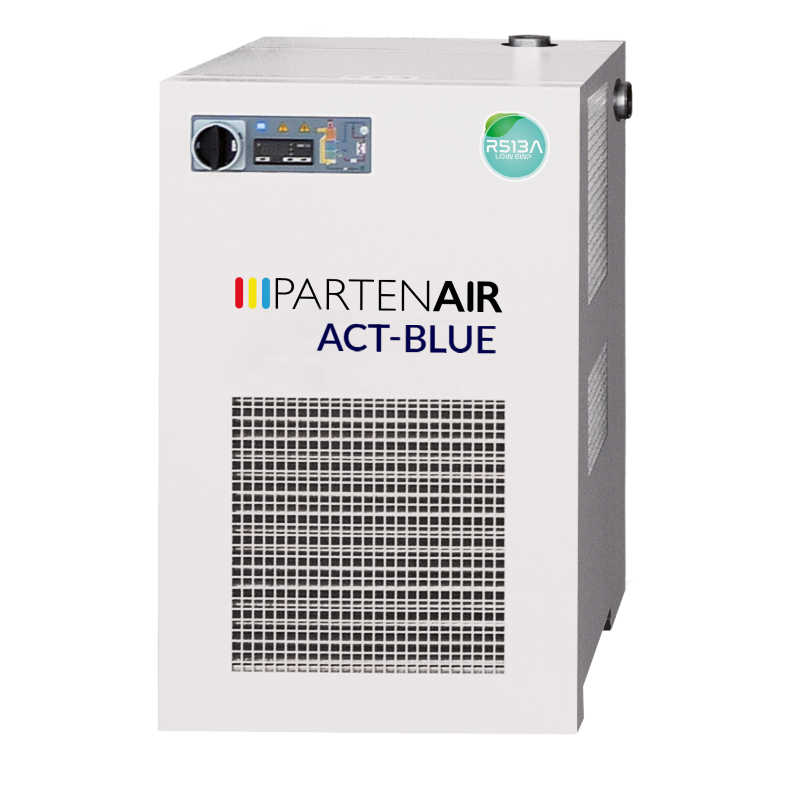

ACT-BLUE dryer R513A
| Manufacturer | Partenair |
| Categories | Compressed air treatment, Dryers for compressed air circuits: refrigeration, adsorption, membrane dryers, Refrigerated compressed air dryers |
| Document to download | |||
| Documentation ACT-BLUE | Brochure ACT-BLUE |
Discover the ACT-BLUE range with R513A refrigerant
Developed on the solid foundations of the ACT-EVO range, the new ACT-BLUE series is a cutting-edge solution to the environmental challenges posed by growing regulations on HFC refrigerants.
ACT-BLUE dryers use R513A refrigerant, an innovative solution with a reduced global warming potential (GWP).
Non-flammable (A1-rated) and non-toxic, R513A offers a reliable, sustainable alternative to natural fluids such as propane (highly flammable) or CO2 (requiring high pressures).
Thanks to their low energy consumption, optimum performance and advanced design, ACT-BLUE dryers guarantee maximum efficiency while respecting the environment. They embody a sustainable and reliable technological response, adapted to current and future requirements.
- Dew point +3°C under pressure (Class ISO 8573-1: 2001 = 4)
- Environmentally friendly, non-toxic and non-flammable refrigerant with low global warming potential
- High efficiency monobloc heat exchanger made entirely of aluminium
- Vertical design of the exchanger, natural separation of the water by gravity, without risk of re-training.
- Proportional power regulation for perfect dew point stability
- Extremely low pressure drop
- Compressed air inlet temperatures up to 70°C
- Digital dew point display.
- Electronic controller with configurable remote alarm reporting.
- Low energy consumption.
* Select the generic if you don't know which model to choose. The sales department will contact you to determine the appropriate model.
(1) Nominal flow rate at 7 bar pressure, 35°C compressed air temperature, 25°C ambient temperature
for a maximum dew point of +3°C in accordance with ISO 8573-1

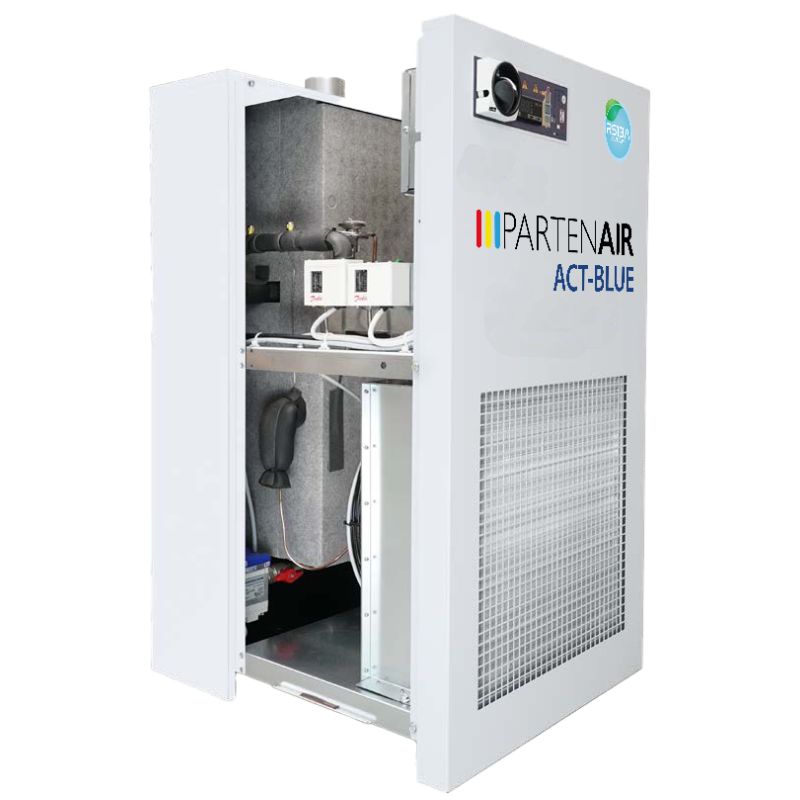

High-efficiency monoblock heat exchanger
The ACT-BLUE series is equipped with ALU-DRY heat exchangers of vertical design, combining air-to-air (economizer), air-to-refrigerant (evaporator) and anti-fog condensate separator modules. This design ensures natural water separation by gravity, with no risk of re-entrainment, while offering optimum energy efficiency.
Precise power regulation
Thanks to a proportional control system, ACT-BLUE dryers guarantee perfect dew point stability (+3°C), whatever the operating conditions.
Advanced digital display
ACT-BLUE dryers are equipped with a high-performance electronic controller that displays the dew point and manages system regulation, while enabling remote alarm transmission via a configurable dry contact.
Low energy consumption
Designed to minimize pressure drop and maximize efficiency, ACT-BLUE dryers consume little energy while delivering exceptional performance, reducing costs for the user.
Optimized purge valve
Depending on the model, the ACT-BLUE series incorporates timed or level-sensing drains, ensuring efficient condensate evacuation while limiting compressed air losses.

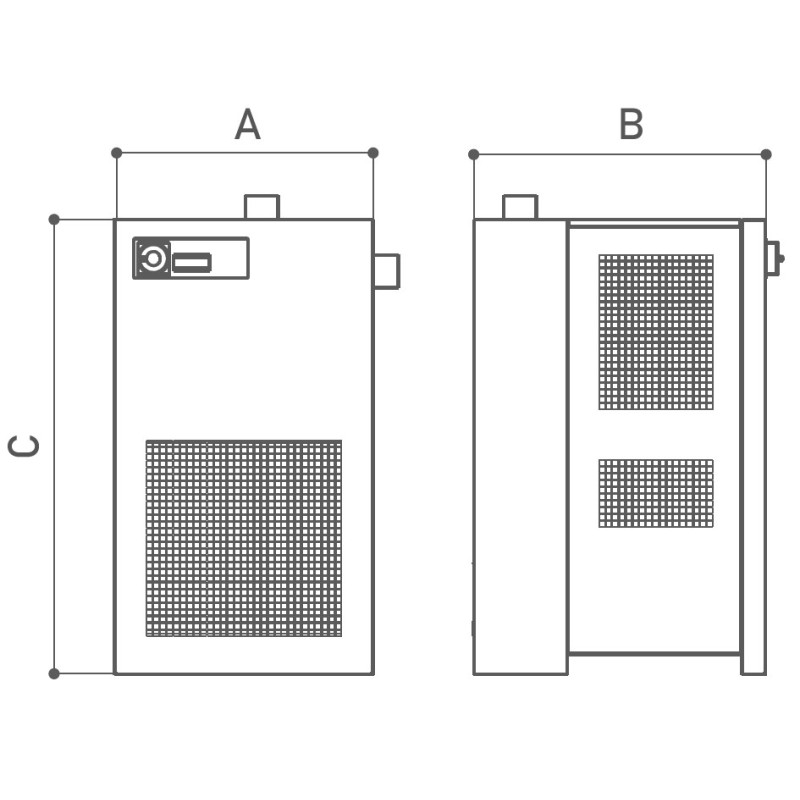

Detailed specifications
Correction factors:
Any deviation of nominal parameters causes the application of the following correction factors.
| Operating Pressure |
Bars | 4 | 5 | 6 | 7 | 10 | 12 | 14 | 16 |
| Correction Factor |
x | 0.77 | 0,86 | 0,93 | 1 | 1,14 | 1,21 | 1,27 | 1.33 |
| Pressure dew point |
°C | 3 | 5 | 7 | 10 |
| Correction Factor |
x | 1,00 | 1,09 | 1,19 | 1,37 |
| Ambient temperature |
°C | 25 | 30 | 35 | 40 | 45 | 50 |
| Correction Factor |
x | 1,00 | 0,96 | 0,90 | 0,82 | 0,72 | 0.60 |
| Compressed air temperature |
°C | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 |
| Correction Factor |
x | 1.20 | 1,12 | 1,00 | 0,83 | 0,69 | 0,59 | 0,50 | 0,44 | 0,39 | 0,37 |
| Nominal performance | Pt. dew point + 3°C at 7 bar pressure |
| 35°C compressed air and 25°C ambient temperature | |
| Min. - max. ambient temperature | 1°C - 45°C |
| Compressed air temperature min. - max. | 10°C - 70°C |
| Maximum operating pressure | 16 bars |
| Nominal pressure loss | From 20 to 140 mbar (depending on model) |
| Refrigerant All models: | R 513 A |
