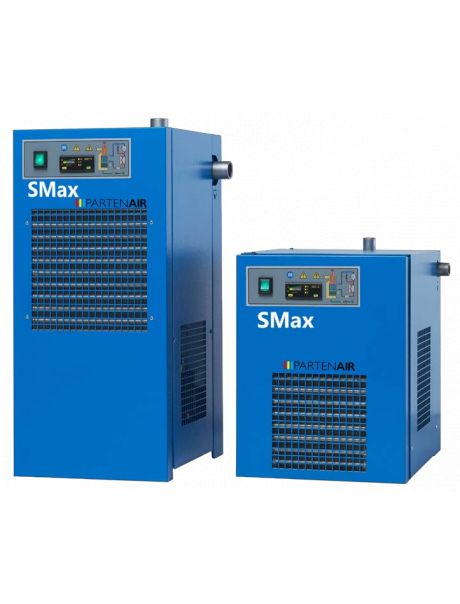

SMAX refrigeration dryers

See the choice of models
Document to download

Reliability, simplicity, solidity

Designed with technologies from the ACT series, the SMAX series make for a great air quality for industrial purposes, with minimum clutter.


    •    electronic condensation drain

    •    minimum clutter

    •    low energy consumption

    •    electronic controller

    •    LED display of dew point

    •    up to 55ºC inlet air temperature

    •    extremely low pressure drop (<150 mbar on avg.)

    •    proportional power regulation for perfect dew point stability

    •    vertical design of the heat exchanger, natural separation of the water through gravity, without risk of backflow

    •    integrated aluminium close-coupled heat exchanger

    •    processing capacity designed to adapt to generic compressor powers




Model

Model Input connection Flowrate (m³/h) My wish
SMax 4 3/8“ 21
SMax 5 1/2“ 36
SMax 7 1/2“ 57
SMax 10 1/2“ 72
SMax 15 1/2“ 108
SMax 20 1“ 150
SMax 25 1“1/4 192
SMax 30 1“1/4 258
SMax 35 1“1/4 312
SMax 40 1“1/2 366
SMax 50 1“1/2 450
SMax 75 2“ 630
SMax 100 2“ 780
SMax 120 2“1/2 1008
SMax 125 2“1/2 1140
SMax 150 2“1/2 1320
Advise me

* Select the generic if you don't know which model to choose. The sales department will contact you to determine the appropriate model.

Correction factors: any deviation of nominal parameters causes the application of correction factors.

Small but sturdy


A highly efficient monobloc heat exchanger, built entirely out of aluminium, gathers in a unique configuration the five essential functions of the air drying procedure: pre-coling, condensation, separation, draining and compressed air heating.
This heat exchanger diminishes the pressure drop and is an overall energetically very efficient unit.

The dew point is maintained constant thanks to a high quality proportional bypass  regulator valve, specially developed by DANFOSS®. It procure perfect stability and frost-safety, regardless of the dryer’s loading rate.

Detailed specifications

Nominal performance

for 7 bar pressure
35ºC compressed air and 25ºC ambient
Minimum ambient temperature

1°C - maxi. 45°C
Minimum compressed air temperature

10°C - maxi. 55°C
Maximum service pressure

SMAX 4 to 15 : 16 bars
SMAX 20 to 150 : 14 bars
Power supply

SMAX 4 to 120 : 240/1/50 Hz.
SMAX 125 to 150 : 400/3/50 Hz.
Nominal pressure drop

from 40 to 340 mBar, see model.
Refrigerant

R 134 A (SMAX 4 to 25)
R 407 C (SMAX 30 to 150)
