DEWMAT humidity sensor

Sonde hygrométrique
See the choice of models
+ -
Manufacturer Partenair
Categories Measure, Measure the humidity, Hygrometric sensors
Document to download

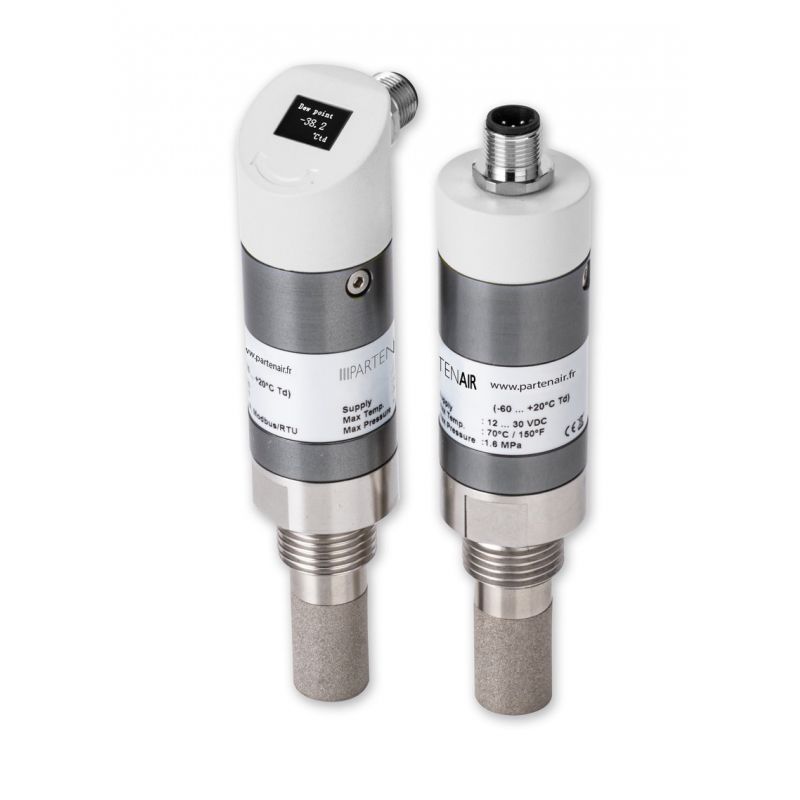

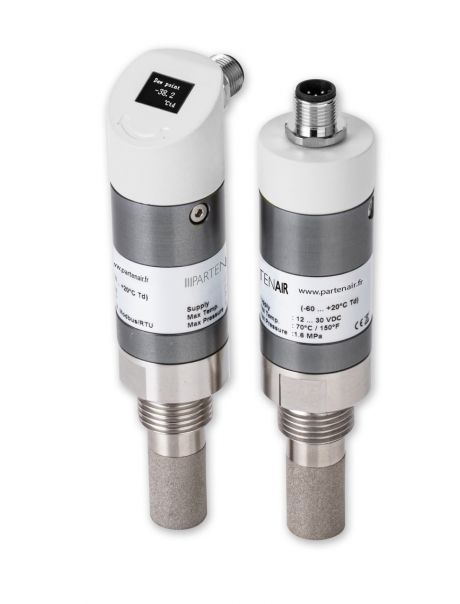

The DEWMAT 780 dewpoint sensor is a reliable and long-term stable dew point sensor for industrial applications.

It uses a completely new sensor technology delivering stable measurement signals, even when the humidity is very low, thus offering reliable and precise measurements up to dew temperatures of -100 ° C.

  • Dewpoint measurement down to –100 ° C
  • New sensor technology
  • Variant with integrated pressure measurement
  • Various output signals depending on the versions: 1 x 4 ... 20 mA, 2 x 4 ... 20 mA, RS-485 (Modbus), 4 ... 20 mA with loop power
  • IP65 enclosure offering protection in restrictive industrial applications
  • Very fast reaction times allow safe signaling when the limit values are exceeded
  • Direct installation in a dryer possible via ½ "thread
  • High precision, ± 2 ° C dew point.
Model

Model My wish
DEWMAT sensor
Advise me

* Select the generic if you don't know which model to choose. The sales department will contact you to determine the appropriate model.

Detailed specifications

Measuring range Dewpoint : -100 °C ... 0 °C
Temperature : -30 °C ... +70 °C
Pressure : -0.1 ... 1.6 MPa
Accuracy Dewpoint: 2 °C
Temperature : 0.3 °C
Pressure : ± 5 kPa
Pressure range 0,1 ... 1,6 Mpa
Power supply 12 ... 30 V CC/30 mA
Type of gas Non-corrosive gas
Ambient temperature 0 °C ... +50 °C
Transport temperature -30 °C ... +70 °C
Reaction time -80 °C ... -20 °C : 20 s
-20 °C ... -80 °C : 3 min
Output signal 4 ... 20 mA, 3 conductors (DEWMAT 780.170, 180 & 200)
Modbus / RTU (DEWMAT 780.190 & 210)
current loop 4 ... 20 mA, 2 conducteurs (DEWMAT 780.220)
Analog output 4 mA --> -100 °C / 20 mA --> 0 °C
Racct. Electric M12, 5 poles
Materials Process connection : stainless steel 1.4301 (304)
Housing : zinc alloy
Protection IP 65
Process connection Thread G 1/2" (ISO 228/1)
EMC compliance Complies with CEI 61326-1
