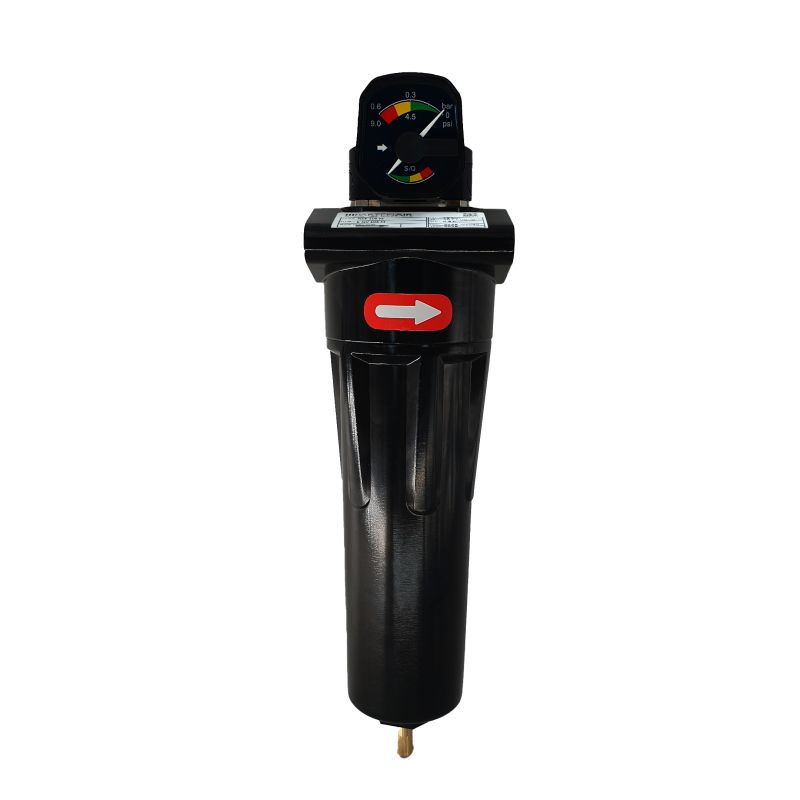

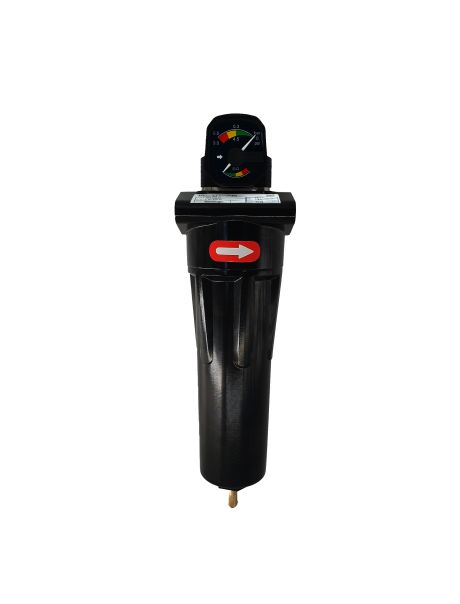

Pre-filters - Grade M (1µm)
The PHENIX-M series micron filters can be used as pre-filters on humid air and as protection for the oil separator filters of the PNX-S series.
Their body, made of die-cast aluminium, is protected against corrosion by internal and external cataphoresis treatment.

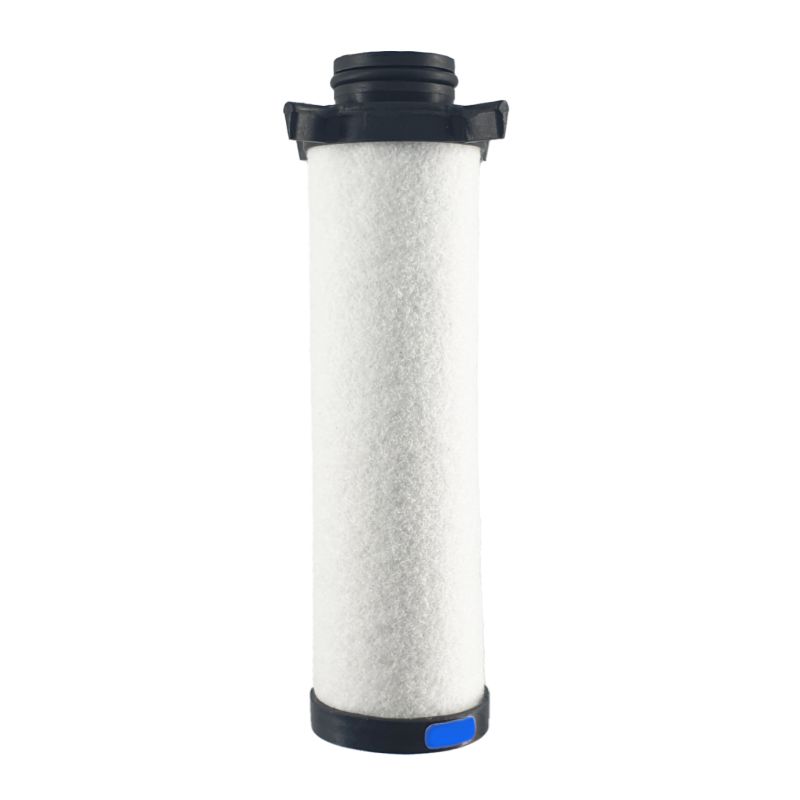

The filtering elements are provided with a draining outer layer of polyester fibres, ultrasonically welded, offering much greater resistance and efficiency than traditional reticulated foam layers.
Indispensable for all compressed air production plants ! To be installed at the beginning of the line, after the cyclone separator.
- Filtration of particles down to 0.01μ and residual oil 0.01 mg/m3 at 20°C (ISO Class 8573 = 1 )
- QR Code on the filter, so you can easily find the manual and certificates for your PHENIX filter!
- Total internal and external anti-corrosion protection by KTL Dip-Coating.
- Filters comply with Directive 14/68 on pressure equipment for group 2 gases.
- Design in compliance with ISO 12500.
- Manufacture certified to ISO 9001.
- Silicone-free materials.
(*) Flow rates indicated according to ISO 7183 (20ºC and 1 bar absolute) under 7 bar relative
Particulate matter: > 99.9999% at 0.01μ
Oil: 0.01 mg/m3 at 20°C
Elimination of liquid phases at the start of air treatment.
Detailed specifications
Correction factor for operating pressure
| Operating pressure | Bars | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
| Factor | x | 0,27 | 0,41 | 0,54 | 0,67 | 0,79 | 0,9 | 1,0 | 1,08 | 1,16 | 1,23 | 1,3 | 1,36 | 1,41 | 1,46 | 1,51 | 1,56 |
| Air temperature | °C | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 |
| Factor | x | 1,05 | 1,03 | 1,01 | 1 | 0,98 | 0,96 | 0,95 | 0,93 | 0,92 | 0,9 | 0,89 | 0,87 |
| Detailed features | NVF-U |
| Classe de qualité selon ISO 8573-1:2001 | Particules : 1 |
| Particle filtration | 0,01μ |
| Residual oil content at 20°C | 0,01mg/m3 |
| Min/max compressed air temperature | 1°C / 120°C |
| Maximum operating pressure | Selon modèle |
| Loss of charge (initial) | 100mbars |
| Maximum recommended pressure drop | 350 mbars |
